Arc Flash Requirements for Industrial Facilities

A 600 V switchboard can appear routine right up to the moment a fault develops. In that instant, an arc flash can release extreme heat, pressure, molten metal, sound, and light. Arc flash requirements exist to control that risk before a qualified worker opens equipment, performs diagnostics, or works near exposed energized conductors.

For facility owners and operations teams, compliance is not a label applied at project closeout. It is a documented safety process connected to system design, maintenance condition, worker competency, and the actual work being performed. A strong program protects people, supports reliable operations, and gives management a defensible record of how electrical hazards are being controlled.

What Arc Flash Requirements Cover

In Canada, arc flash obligations are shaped by provincial occupational health and safety requirements, applicable electrical codes, employer procedures, and recognized electrical safety standards such as CSA Z462. The exact duties can vary by jurisdiction and facility, but the central expectation is consistent: employers must identify electrical hazards, assess the risk, establish safe work practices, and provide appropriate protection.

CSA Z462 is commonly used as the practical framework for electrical workplace safety. It addresses electrical safety programs, risk assessments, energized work, approach boundaries, protective equipment, training, and documentation. It should be applied alongside the Canadian Electrical Code and the facility's site-specific safety management system, not treated as a replacement for either.

An arc flash program should answer clear operational questions. Which equipment has a credible arc flash exposure? What is the incident energy at the working distance? Where are the approach and arc flash boundaries? Can the work be completed in an electrically safe work condition? If energized work is justified, what controls, procedures, qualifications, and personal protective equipment are required?

Start With an Accurate Arc Flash Assessment

An arc flash assessment is the technical foundation of the program. It uses field-verified electrical system information to determine available fault current, protective device clearing times, equipment configuration, conductor details, transformer data, and other factors that influence incident energy.

The quality of the inputs matters. A calculation based on outdated single-line drawings or assumed breaker settings may produce labels that no longer reflect the installed system. Field verification is particularly important after expansions, generator additions, transformer replacements, protection upgrades, or changes to utility supply capacity.

A complete assessment generally includes a current single-line diagram, short-circuit study, coordination study, and arc flash incident energy analysis. These components work together. For example, a protective device that is poorly coordinated or set too slowly may allow a fault to persist longer, substantially increasing incident energy at downstream equipment.

The assessment should also account for the equipment a worker will actually encounter. Panels, motor control centres, switchgear, disconnects, control cabinets, and industrial control equipment may each require different data and assumptions. Equipment condition and enclosure characteristics can affect both the risk evaluation and the controls selected for a task.

Labels Must Reflect the Current System

Arc flash labels are a field tool, not a substitute for planning. They should be legible, durable, placed where workers can see them before interacting with the equipment, and based on the current study results. A useful label typically identifies the nominal voltage, arc flash boundary, incident energy or applicable PPE information, working distance, and other data required by the facility's program.

Labels should be reviewed when electrical system changes could affect fault current or protective device operation. This includes changes that may seem minor from an operations perspective, such as altering a trip setting, replacing a breaker, or reconfiguring an emergency power system. Periodic program review is also prudent because equipment, standards, and work practices change over time.

De-Energization Is the Primary Control

The most effective way to reduce arc flash exposure is to establish an electrically safe work condition. In practical terms, this means planning the outage, isolating all energy sources, applying lockout procedures, verifying absence of voltage with properly rated test instruments, and addressing stored energy or backfeed sources.

This approach can create scheduling pressure in continuous-process facilities, but it is usually safer and often more efficient than performing energized work under layers of administrative controls. A well-planned shutdown allows maintenance teams to inspect, test, torque, clean, and repair equipment without exposing personnel to unnecessary electrical hazards.

Energized work should not become a convenience decision because a shutdown is inconvenient. Where energized work is necessary, the reason must be properly evaluated and documented under the site's electrical safety program. Diagnostic testing, commissioning activities, or situations where de-energization introduces a greater hazard can require energized interaction. The task still requires a risk assessment, defined boundaries, qualified personnel, appropriate PPE, and a clear work plan.

PPE Is Only One Part of the Control Strategy

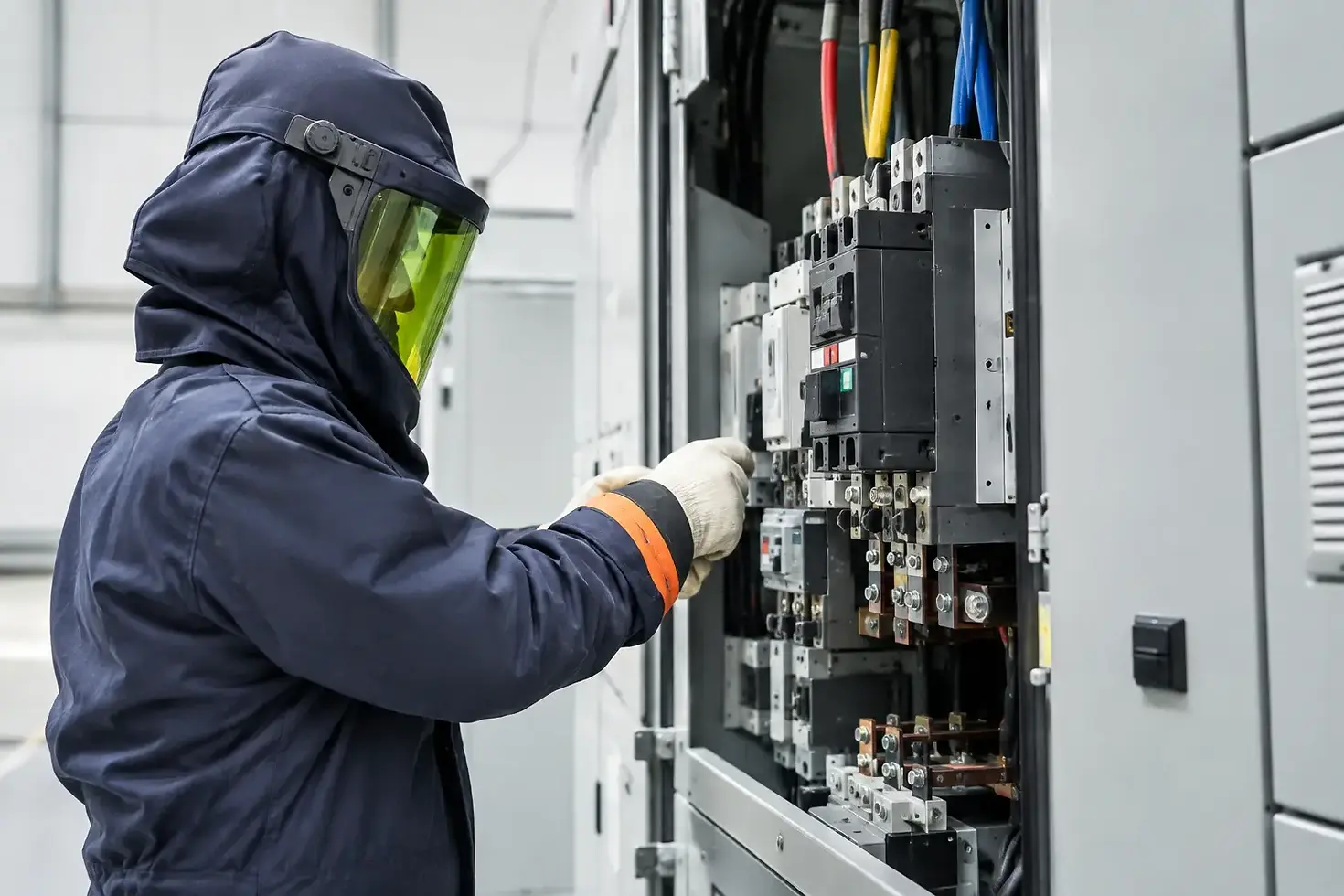

Arc-rated clothing, face protection, gloves, and other personal protective equipment are essential when a risk assessment identifies exposure that cannot be eliminated. However, PPE is the last line of defence. It does not prevent an arc flash, correct a loose connection, or compensate for inadequate maintenance.

The PPE selected must match the task and the calculated or assessed incident energy. It must also be compatible with other hazards. A worker may need voltage-rated gloves for shock protection in addition to arc-rated clothing for thermal exposure. Equipment must be inspected, maintained, and worn correctly to provide the intended protection.

Facilities should avoid relying on generic PPE categories where a calculated incident energy assessment is available and appropriate. A task-specific approach gives workers clearer direction and helps management avoid both under-protection and unnecessarily restrictive PPE requirements.

Maintenance Directly Affects Arc Flash Risk

Protective devices are central to any arc flash calculation because their clearing time influences incident energy. If a breaker, fuse, relay, or switch does not operate as expected, the real-world hazard may be higher than the study indicates.

Preventative maintenance should therefore be part of arc flash compliance, not a separate activity. Inspection, testing, cleaning, torque verification, infrared scanning, relay testing, and breaker servicing all contribute to safer equipment performance. Maintenance records also provide valuable evidence when a facility reviews its risk controls or investigates an electrical event.

Conditions found during maintenance can require the arc flash assessment to be revisited. Damaged enclosures, corrosion, degraded insulation, missing barriers, incorrect protective settings, or unauthorized modifications are not merely maintenance deficiencies. They can change the exposure faced by workers and should be corrected before routine energized interaction continues.

Training, Procedures, and Qualified Workers

A technically sound study will fail in the field if workers do not understand how to use it. Electrical safety training should be role-specific. A qualified electrical worker needs knowledge of the system, hazard recognition, approach boundaries, test instrument use, lockout and verification procedures, PPE limitations, and emergency response expectations.

Operations personnel also need clear instructions. They may not perform electrical work, but they can be exposed when operating disconnects or responding to process upsets. Defined responsibilities prevent gaps between operations, maintenance, engineering, and contractors.

Written procedures should be practical enough to use during a real outage or troubleshooting event. They should identify when an energized electrical work permit or equivalent documented authorization is required, who approves it, how hazards are communicated, and when work must stop. The strongest procedures are reviewed with the people who perform the work, then reinforced through supervision and periodic audits.

Applying Arc Flash Requirements to Projects and Existing Assets

For new construction, arc flash considerations should begin during design and commissioning. Protection coordination, equipment selection, maintainability, working clearances, remote operation options, and accurate documentation can reduce exposure throughout the asset lifecycle. Waiting until commissioning is complete to consider arc flash labelling can leave avoidable design issues in place.

Existing facilities require a different discipline: verify what is installed, compare it to the drawings, assess maintenance history, and prioritize the equipment that presents the highest exposure or most frequent worker interaction. This is particularly valuable in industrial plants where electrical systems have evolved through years of process changes and phased upgrades.

For Alberta and British Columbia facilities, a qualified electrical contractor can help translate study findings into field-ready controls, complete corrective work, and maintain the documentation needed for ongoing compliance. Spectrum Electrical and Instrumentation Services approaches this work with the same focus required for any critical electrical task: accurate information, code-compliant execution, and leadership oversight from planning through final inspection.

Arc flash safety becomes manageable when it is treated as a living operational discipline rather than a one-time engineering report. Keep system data current, maintain protective equipment, plan outages early, and ensure workers have clear direction before they approach energized equipment. Those habits protect people while preserving the reliability that industrial facilities depend on.
