Instrument Calibration Guide for Reliable Ops

A pressure transmitter that reads 2 percent high does not always trigger an alarm. Sometimes it does something more expensive - it quietly shifts process decisions, hides developing faults, and compromises product quality over time. That is why an instrument calibration guide matters in real operating environments. For plant and facility teams, calibration is not a paperwork exercise. It is a control measure that protects safety, uptime, compliance, and confidence in the data your operation relies on.

What an instrument calibration guide should actually do

A useful instrument calibration guide should help teams make sound field decisions, not just define calibration in general terms. In practice, calibration means comparing an instrument's output to a known reference, identifying error, and adjusting the device where applicable so it performs within an acceptable tolerance.

That sounds straightforward until you apply it across a live facility. Different instruments drift at different rates. Some devices can be adjusted in place, while others need bench testing or replacement. Environmental conditions, process criticality, manufacturer requirements, and regulatory expectations all affect the right approach. A disciplined calibration program accounts for those variables instead of treating every loop the same way.

For operations and maintenance leaders, the value is clear. Accurate instruments support stable control, defensible reporting, safer shutdown logic, and better maintenance planning. Poorly managed calibration, by contrast, creates uncertainty. When the reading is questionable, every decision built on that reading becomes questionable too.

Where calibration risk shows up first

The earliest signs of calibration issues are often subtle. A level transmitter may still track, but not consistently across its range. A temperature element may appear stable, yet be offset enough to affect batching, energy use, or equipment protection. Gas detection, pressure indication, flow measurement, and analytical instrumentation carry even higher consequences when readings drift beyond tolerance.

The trade-off is that not every instrument needs the same calibration frequency or the same level of intervention. A non-critical local indicator in a benign service does not present the same operational risk as a custody-related flow device or a transmitter tied to shutdown logic. Good practice starts by ranking instrument criticality and assigning calibration intervals based on risk, service conditions, and performance history.

This is also where many sites either over-maintain or under-maintain. Overly aggressive calibration schedules can add cost, create unnecessary disturbance, and increase exposure during intrusive work. Delayed calibration can lead to process inefficiency, quality issues, and avoidable failures. The right interval is evidence-based.

Building an instrument calibration guide around criticality

The most effective calibration programs begin with asset classification. If a device affects personnel safety, environmental compliance, product quality, process control stability, or revenue measurement, it deserves tighter oversight than general indication.

A practical structure is to sort instruments into high, medium, and low criticality groups. High-criticality instruments typically include shutdown devices, safety-related measurements, emissions-related monitoring, and control points where error has immediate process consequences. Medium-criticality devices support efficient operation and maintenance planning. Low-criticality instruments may still require calibration, but usually on a wider interval or during planned outages.

From there, teams should define acceptable tolerances, test methods, required standards, and documentation expectations for each class. This is not only about technical discipline. It also improves planning. When work scopes are clear, field technicians spend less time interpreting expectations and more time executing correctly.

Preparation matters as much as the calibration itself

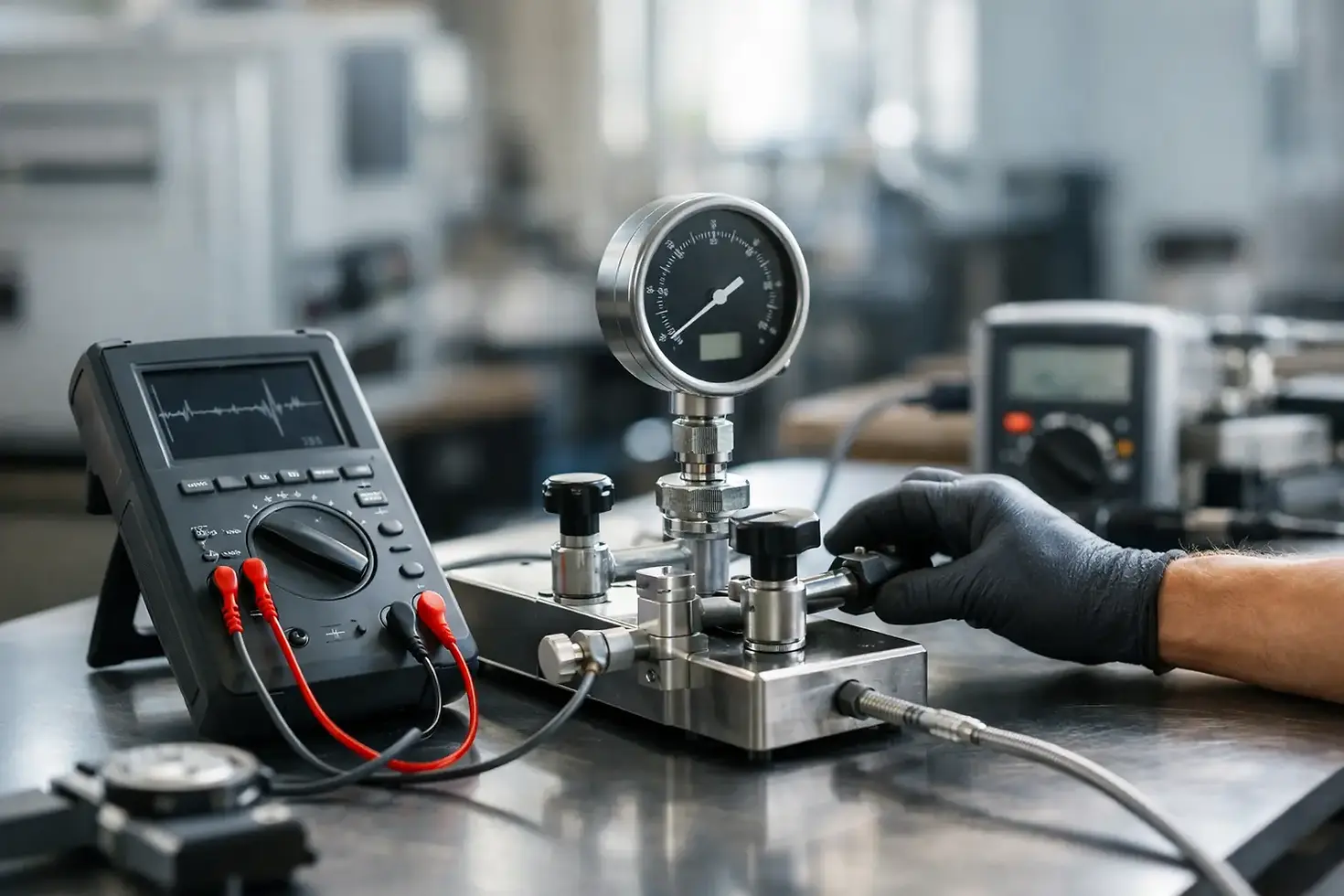

Calibration quality is often won or lost before the first test is performed. A proper job starts with reviewing device data sheets, loop information, previous calibration records, and manufacturer instructions. The selected reference equipment must be suitable for the required accuracy and have its own valid calibration status.

Field conditions also matter. Temperature extremes, vibration, impulse line issues, plugged taps, poor terminations, and unstable process conditions can all affect readings. If those conditions are not identified first, the team may record misleading results or adjust a healthy instrument to compensate for an unrelated problem.

Isolation and process safety controls must be planned carefully. Depending on the application, that may mean lockout procedures, bypass management, loop inhibition, permit coordination, or temporary operational safeguards. On a live industrial site, calibration is never separate from safety and code-compliant work practices.

How the calibration process should be executed

A consistent calibration process reduces variability between technicians and produces records that stand up to audit or troubleshooting review. In most cases, the work should include verification of tag information, inspection of the device and installation, as-found testing, adjustment where permitted and necessary, and as-left verification.

The as-found result is especially important. It tells the real story of instrument condition before intervention. Without that data, it becomes difficult to trend drift, justify interval changes, or identify recurring reliability issues. If a transmitter repeatedly arrives out of tolerance, the answer may not be a tighter calibration schedule. It may point to process stress, mounting issues, electrical noise, poor environmental protection, or device ageing.

Adjustment should be controlled, not automatic. If an instrument is within tolerance and stable, unnecessary adjustment can introduce error rather than remove it. If it is outside tolerance, the technician should confirm whether the issue is calibration drift, installation-related influence, sensor degradation, or a broader loop problem. Calibration and troubleshooting often overlap, and separating the two too rigidly can waste time.

Documentation is part of the technical work

Calibration records should be complete enough to support operations, maintenance, quality, and compliance needs. At minimum, records should identify the instrument, location, date, technician, reference standard used, environmental or field notes where relevant, as-found data, any adjustments made, and as-left results.

That level of detail matters for more than audit readiness. It helps maintenance teams spot trends, supports root cause analysis, and gives project managers a clearer picture of asset health across the site. It also protects the owner. When a critical reading is questioned later, documented calibration work provides traceability.

For regulated and operationally sensitive facilities, consistency in documentation is often a deciding factor in contractor performance. Accurate field work loses value if the record is incomplete, unclear, or disconnected from the asset history.

Common calibration problems that waste time and money

Some calibration issues are technical, but many are procedural. Instruments get tested with the wrong range configured. Reference equipment is not suitable for the required tolerance. Loops are calibrated without checking the full signal path. Devices are adjusted even though the real problem is wiring, tubing, or a failing sensor.

Another common problem is treating all calibrations as interchangeable. A smart positioner, an RTD input, a differential pressure transmitter, and an analytical instrument each require different methods and judgement. Teams need personnel who understand both the device and the process context.

There is also the issue of access and scheduling. If calibration work is repeatedly deferred because production windows are tight, the site should review whether tasks can be grouped better, whether online verification is possible for certain assets, or whether outage planning needs to account for critical instrumentation more deliberately.

When to recalibrate, repair, or replace

Not every out-of-tolerance result should lead to recalibration and return to service. If a device shows instability, repeated failure, physical damage, moisture ingress, or poor repeatability, recalibration alone may only mask a reliability problem. In those cases, repair or replacement is often the more responsible choice.

The decision depends on criticality, device age, lead time, and failure consequences. A non-critical device with minor drift may reasonably be adjusted and monitored. A safety-related or production-critical instrument with recurring issues usually warrants a more conservative response.

This is where experienced field judgement has real value. A calibration program should not be run as a box-checking exercise. It should support sound asset decisions based on performance, risk, and long-term reliability.

Why contractor discipline matters

For many facilities, calibration work is performed during shutdowns, turnarounds, commissioning, or tightly scheduled maintenance windows. In that environment, technical ability alone is not enough. The work also requires planning discipline, clear communication, accurate records, and leadership oversight.

That is especially true in Alberta and British Columbia, where industrial sites often operate under demanding environmental conditions and strict compliance expectations. A contractor should be able to execute the field work correctly, identify related deficiencies, and communicate findings in a way that helps the owner act quickly and confidently.

At Spectrum Electrical and Instrumentation Services Limited, that standard of execution is tied to qualified personnel, documented processes, and direct leadership accountability. For clients, that reduces uncertainty. The work is not only completed - it is completed with the level of inspection, transparency, and technical care that critical environments require.

A reliable calibration program is not built on certificates alone. It is built on accurate standards, competent execution, traceable records, and decisions grounded in field reality. If your instruments are guiding process, safety, and compliance, they deserve that level of attention.
