Instrument Loop Check Guide for Reliable Startups

Commissioning delays often trace back to small misses - one reversed pair, one incorrect range, one output that was assumed rather than proven. In critical facilities, those details become startup risk. This instrument loop check guide outlines how disciplined loop verification protects safety, avoids rework, and gives operations teams confidence that field devices, wiring, control logic, and final elements are working as intended.

What an instrument loop check is really confirming

A loop check is more than a continuity test and more than a paperwork exercise. It is the functional verification that a complete measurement or control path performs correctly from the field device to the control system and back to the final element where applicable. That includes transmitter power, polarity, terminations, scaling, marshalling, I/O assignment, HMI indication, alarm response, and output action.

For a simple analog input, the goal is to prove that the instrument sends the correct signal and that the control system interprets it correctly. For a control loop, the scope expands. You also need to confirm the controller output, valve travel, fail position, position feedback, and any interlocks or permissives tied to that loop.

This is where many projects either gain momentum or lose it. A proper loop check catches issues before startup conditions make troubleshooting slower, riskier, and more expensive.

Why a formal instrument loop check guide matters

In operating plants, there is rarely much tolerance for uncertainty. Project schedules are compressed, shutdown windows are limited, and every contractor on site is affecting someone else’s sequence. A formal instrument loop check guide creates a repeatable method so each loop is tested to the same standard and documented clearly.

That consistency matters for several reasons. First, it reduces the chance that a loop is signed off based on assumption rather than test evidence. Second, it improves coordination between electrical, instrumentation, controls, and operations personnel. Third, it creates a reliable record for turnover, maintenance, and future troubleshooting.

It also helps define boundaries. Not every issue found during loop checking belongs to the same discipline. A bad scale in the PLC is different from a wiring error in the field, and both are different from an incorrectly calibrated transmitter. A structured process keeps those distinctions clear.

Preparation before loop checking starts

Good loop checks begin long before anyone applies a simulator or strokes a valve. The quality of the result depends on the quality of the preparation.

Start by confirming the latest issued documents are being used. That normally includes loop drawings, P&IDs, wiring diagrams, termination schedules, cause and effect documentation, instrument index, panel drawings, and I/O lists. If teams are working from mixed revisions, loop check results become unreliable immediately.

Next, verify that construction is actually complete for the loop being tested. Instruments should be mounted, tagged, terminated, and powered where required. Junction boxes and panels should be labelled properly. Tubing, impulse lines, air supply, and accessories should be installed if they form part of the loop function. If any of that remains incomplete, the test often turns into partial verification, which has limited value.

Calibration status also needs attention. A loop check is not a substitute for calibration, and calibration is not a substitute for a loop check. Both are necessary, but they confirm different things. If the transmitter range is incorrect or the valve positioner is not set properly, a passed loop check may still hide a performance problem.

The practical sequence for loop verification

The most effective approach is usually to follow signal flow in a controlled, documented sequence. The exact order can vary by site procedure, but the principle stays the same: prove each link in the chain, then prove the complete loop.

1. Confirm identity and installation

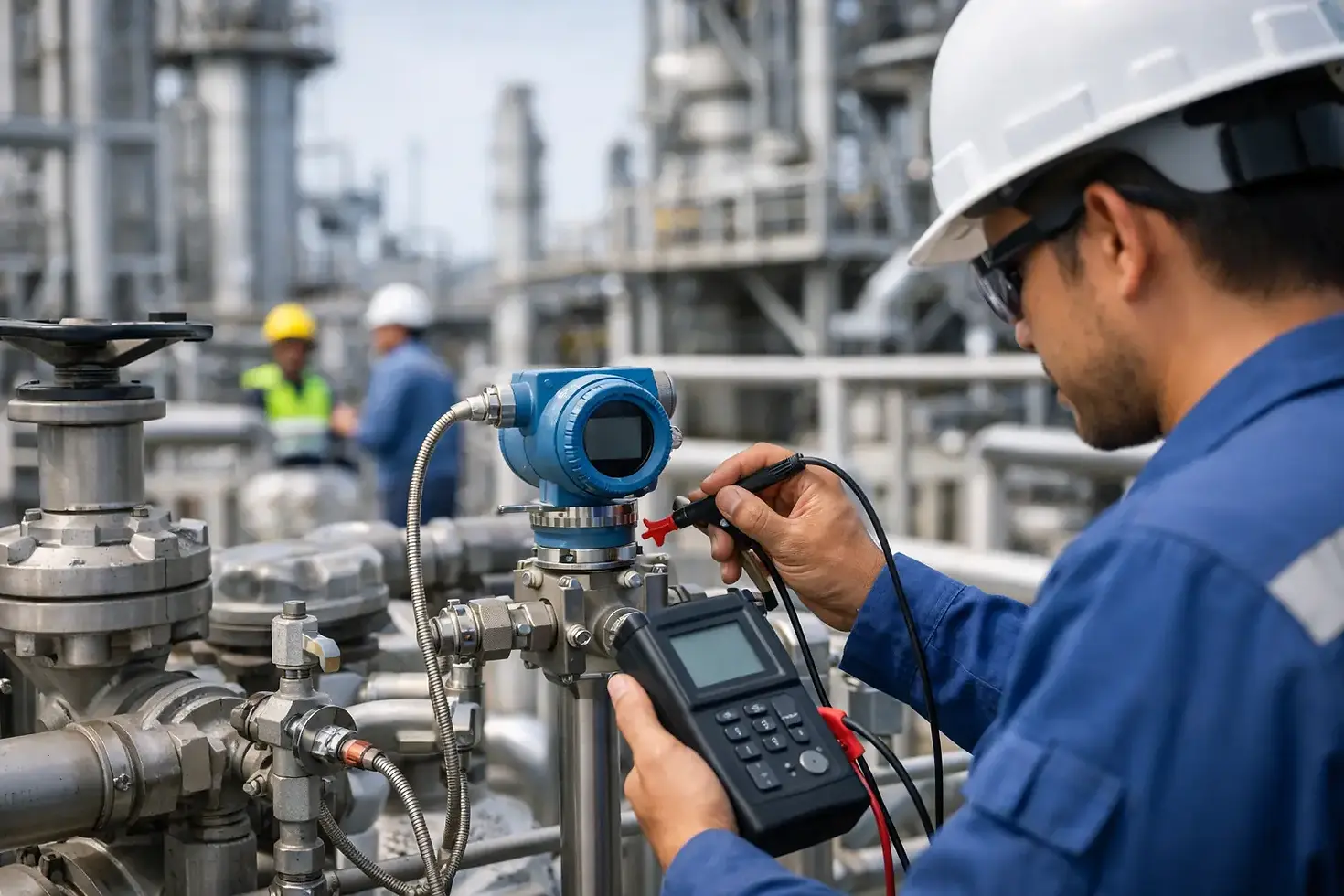

Begin at the field device. Check the tag number, service, range, location, and physical installation against the drawings. Confirm that cables, tubing, and accessories match the intended design. This sounds basic, but tag swaps and location mismatches are common enough to justify the step every time.

2. Verify wiring and termination integrity

Check terminations from the field instrument through junction boxes, marshalling, barriers or isolators if used, and into the control system. Polarity, shield grounding, terminal numbers, and conductor identification all matter. A loop can appear functional while still being landed incorrectly, especially where shared commons or duplicated multicore cables are involved.

3. Prove signal transmission to the control system

For analog loops, apply a known input or simulate the transmitter output and confirm the corresponding value at the PLC, DCS, or RTU. Typical test points include zero, mid-scale, and full-scale. Where precision matters, additional points may be justified. The objective is to confirm both wiring integrity and proper scaling.

Discrete loops should be tested for state change, contact logic, and alarm indication. Normally open versus normally closed errors can create serious startup issues if they are not identified here.

4. Verify HMI, alarms, and logic response

A signal arriving at the controller is only part of the job. The operator interface must display the correct engineering units, descriptors, and alarm conditions. If the loop is tied to interlocks, shutdown logic, permissives, or sequence controls, those functions need to be verified in accordance with the approved test plan and site safety controls.

This is also where trade-offs appear. On some projects, full logic testing is handled during separate functional testing or cause and effect verification. That can be appropriate, but only if scope boundaries are defined clearly so nothing falls through the gap.

5. Test outputs and final control elements

For control loops and shutdown outputs, command the output from the control system and verify the final device response in the field. That may include valve stroke, damper action, relay pickup, solenoid response, motor starter indication, or actuator feedback.

Direction of action is critical. A valve that travels smoothly but responds in reverse can still pass a superficial test if the technician is only checking movement. The loop check must confirm correct movement, correct indication, and correct fail state.

Common failures found during loop checks

The value of loop checking becomes obvious when recurring field issues start appearing. Incorrect terminations, tag mismatches, crossed pairs, scaling errors, dead transmitters, unpowered loops, and wrong I/O assignments are all common. So are subtle problems such as poor shield termination, incorrect barrier selection, and output devices configured with the wrong action.

Some failures are technical. Others are procedural. A device may be installed correctly but documented incorrectly. Or the drawing may be correct while the field revision was never captured. In both cases, the risk is the same: operations receives a system that cannot be trusted without further rework.

Documentation is part of the work

A loop is not truly complete when the signal works once during a field test. It is complete when the result is documented clearly enough for turnover, auditability, and future maintenance.

That record should identify the loop number, test date, personnel involved, instruments used, as-found issues, corrective actions, and final status. Deficiencies should be tracked to closure, not left buried in field notes. If markups were generated, they should feed back into drawing updates and turnover packages.

This discipline pays off later. Maintenance teams need reliable records when troubleshooting an upset six months after startup. Project managers need visibility on completion status. Operations needs confidence that accepted systems were tested properly. Documentation supports all three.

Who should be involved in a loop check

The answer depends on the loop’s complexity and the site’s procedures. A straightforward indication loop may be verified by instrumentation personnel with controls support available as needed. A critical shutdown loop or integrated control function often requires coordinated participation from instrumentation, electrical, controls, and operations representatives.

What matters most is competency and accountability. Loop checks should be carried out by qualified personnel who understand both the device and the broader system impact. In regulated and operationally critical environments, supervision and final review are not paperwork formalities. They are part of risk control.

That is one reason many facility owners prefer contractors with direct leadership oversight and disciplined field execution. Spectrum Electrical and Instrumentation Services approaches commissioning work with that standard in mind because sign-off should mean the loop has been proven, not just visited.

Using this instrument loop check guide in the real world

No single procedure fits every site exactly. A gas plant expansion, a water treatment facility upgrade, and a commercial process system retrofit each bring different constraints. Hazardous area requirements, live plant conditions, shutdown windows, and owner procedures all affect how loop checks are planned and executed.

Still, the principle does not change. A good instrument loop check guide should make testing more rigorous, not more complicated. It should help teams verify the right things in the right order, document the result properly, and resolve deficiencies before startup pressure pushes the job into guesswork.

When loop checks are treated as a critical quality step rather than a commissioning formality, startups are cleaner, troubleshooting is faster, and operators inherit systems they can rely on. That is usually the difference between a handover that creates confidence and one that creates callbacks.

The strongest projects are rarely the ones with the fewest issues on paper. They are the ones where issues are found early, corrected properly, and documented with care before the plant is asked to perform.
